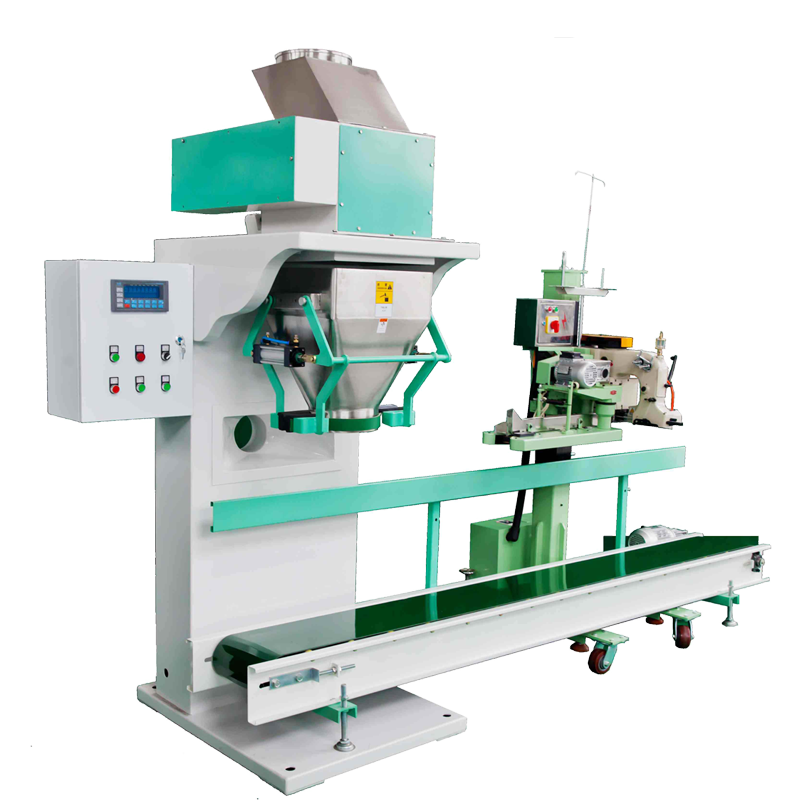

Automatic packaging machine

Automatic packaging machine is mainly used for automatic packaging of materials in food, medicine, chemical industry and plant seeds. The material may be in the form of granules, tablets, liquids, powders, pastes, and the like. The automatic packaging machine has the functions of automatically completing metering, filling, bag making, sealing, cutting, conveying, printing production batch number, increasing easy cutting, no material warning, stirring and so on.

Scope of application:
Instant noodles, ice cream, biscuits, wafer biscuits, egg yolk pie, egg rolls, bread, sausage, seaweed, frozen food, medicine, medicine board, infusion bag (bottle), soap, soap, mosquito coil, paper towel, toilet paper, card, tape, Packaging of fixed-shaped items such as disposable tableware (knives and forks).

Performance characteristics:
The automatic packaging machine has advanced design, reasonable structure and reliable performance. The automatic packaging machine adopts double synchronous belt pulling film, which is controlled by the cylinder to be tensioned, automatically corrected, and automatically alarmed to minimize loss. The metering device is matched with the bag, filling, filling, printing and counting. The metering device can be modified according to the material opening and closing method.
Basic Features
1. Invention patent: A roll of film is automatically slit and translated into two packaging films on the machine. At the same time, two rows of articles are automatically packaged. One machine has two production capacity, and the floor space is small, saving people and saving electricity.
2, touch screen control, simple operation, intuitive display, modular design of electrical appliances, digital control.
3. There are three driving modes: double frequency conversion, double servo, and three-axis servo. No mechanical gearbox, stable and reliable operation, low noise and high tracking accuracy.
4, the position adjustment of the material before and after: automatic or jog button adjustment.
5. Material conveying width adjustment: one handle can adjust two rows of conveying width at the same time.
7, two sets of adjustable bag, can be adjusted to adjust its height and width.
8. There is a traction guide wheel in front of the longitudinal heat sealing wheel, and the traction guiding angle can be adjusted during operation.

working principle
With the improvement of automation, the operation, maintenance and daily maintenance of the packaging machine are more convenient and simple, which reduces the professional skill requirements of the operator. The quality of the product packaging is directly related to the temperature system, the accuracy of the host speed, and the stability of the tracking system. After the machine is running, the film mark sensor continuously detects the film mark (color mark), and the mechanical part of the tracking micro switch detects the position of the machine. The above two signals are sent to the PLC. After the program operation, the output of the PLC is Y6 ( Positive chasing), Y12 (anti-chasing) control tracking the positive and negative tracking of the motor, timely finding and correcting the errors in the production process of the packaging materials and accurately compensate and avoid the waste of packaging materials. If the test cannot meet the technical requirements after tracking the predetermined number of times, it can automatically stop for inspection to avoid the generation of waste products; due to the use of frequency conversion speed regulation, the chain drive is greatly reduced, the stability and reliability of the machine operation are improved, and the reduction is reduced. The noise of the machine running. It ensures the high-tech, high-efficiency and high-tech level of the packaging machine with high efficiency, low loss and automatic detection. Although the transmission system used in the automatic packaging machine has a relatively simple application function, it has high requirements on the dynamic performance of the transmission, and the system requires fast dynamic following performance and high steady speed precision.

development trend
The 12th Five-Year Plan provides 100 billion to 200 billion yuan of equipment for the packaging industry and the food industry, and 80 billion to 100 billion yuan for the “Dailanzi”. This is a good development opportunity for packaging companies. . Nowadays, the scale of China’s food packaging market is increasing day by day, the variety of products is increasing, and the degree of production automation is constantly improving. It is believed that the development and production of domestic food packaging machines will have a major breakthrough in the near future.
With the accelerated pace of life in the country, on-site production of food has become the endorsement of luxury goods, more and more packaging products into people’s lives. As long as you feel hungry on the car, on the road, or in the office, open the vacuum-packed food, everything is so convenient.
According to the predictions of authoritative experts, the global machinery and equipment market demand is growing at an annual rate of 5.2%, and is expected to reach 39.8 billion US dollars by 2012. In the next few years, the sales of packaging equipment in developing countries will exceed that of developed countries such as Japan and the United States. In 2010, China’s demand for packaging machinery and equipment was about 3.3 billion US dollars. The scale of packaging machinery industry is expected to exceed 600 billion yuan
